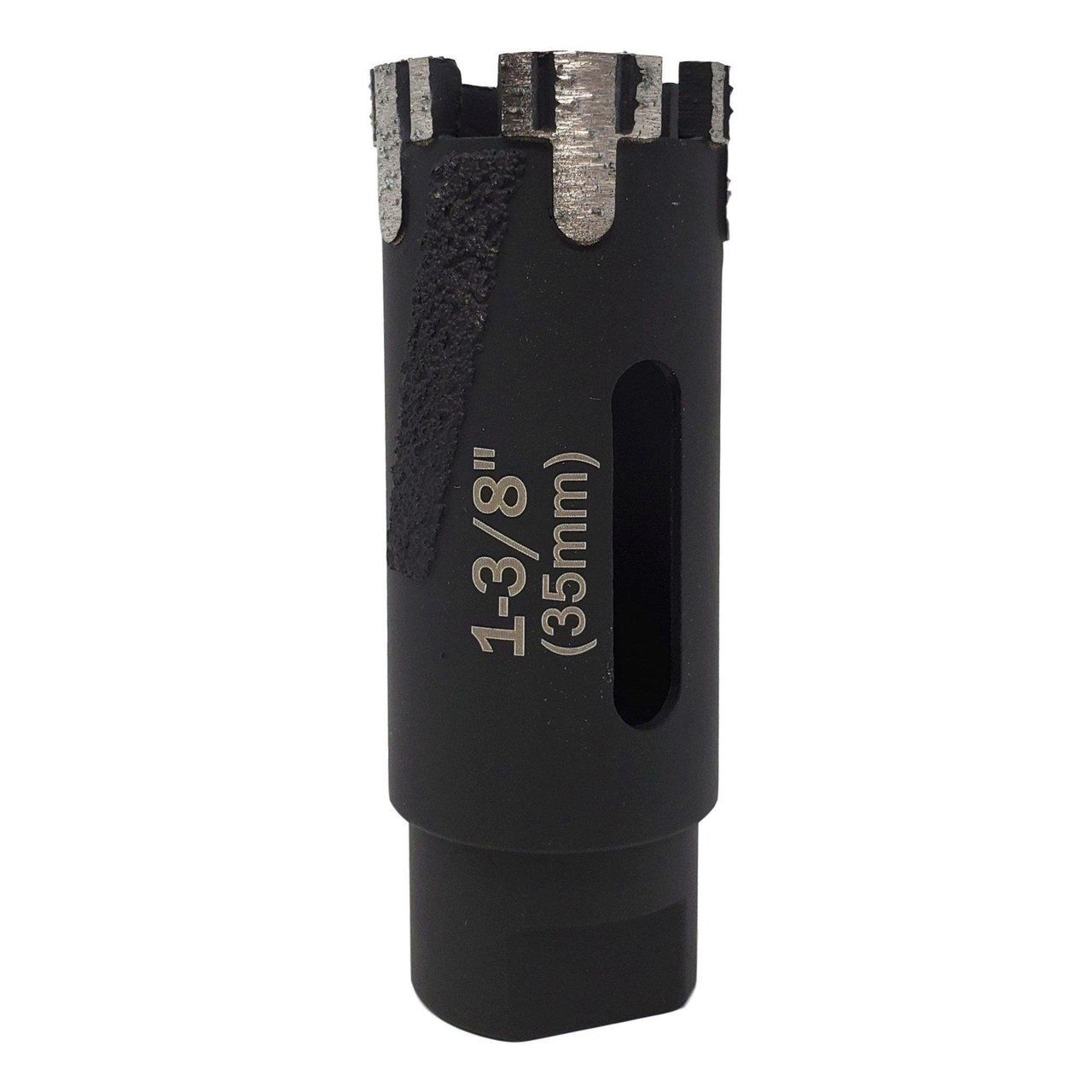

T-Segment Turbo Core Drill Bit is the most widely used bit in our drilling products. This drill bit features T-segment for faster coring, less burning and effective debris removal. The drill bit has vacuum brazed protections on the side of the core. Diameter sizes from 20mm to 150mm.



  • Use: Wet and Dry
  • Machine: Angle grinder
  • Application: Granite, Engineered stone
  • Tip: 7mm x 3mm (20mm~48mm), 7mm x 3.2mm (51mm~150mm)
  • Arbor: 5/8"-11F
  • Max RPM: 4,800~6,500

T-Segment Turbo Core Drill Bit

  • Diameter

    (inch)

    Diameter

    (mm)

    Tip width

    (mm)

    Tip thickness

    (mm)

    Tip length

    (mm)

    1/2 13 7 3 T-shape
    5/8 16 7 3 T-shape
    3/4 20 7 3 T-shape
    7/8 22 7 3 T-shape
    1 25 7 3 T-shape
    1-1/4 32 7 3 T-shape
    1-3/8 35 7 3 T-shape
    1-1/2 38 7 3 T-shape
    1-5/8 41 7 3 T-shape
    1-3/4 45 7 3 T-shape
    1-7/8 48 7 3 T-shape
    2 51 7 3.2 T-shape
    2-1/4 57 7 3.2 T-shape
    2-3/8 60 7 3.2 T-shape
    2-1/2 64 7 3.2 T-shape
    2-7/8 70 7 3.2 T-shape
    3 76 7 3.2 T-shape
    3-1/4 83 7 3.2 T-shape
    3-3/8 85 7 3.2 T-shape
    3-1/2 88 7 3.2 T-shape
    4 101 7 3.2 T-shape
    5 125 7 3.2 T-shape
    6 150 7 3.2 T-shape
